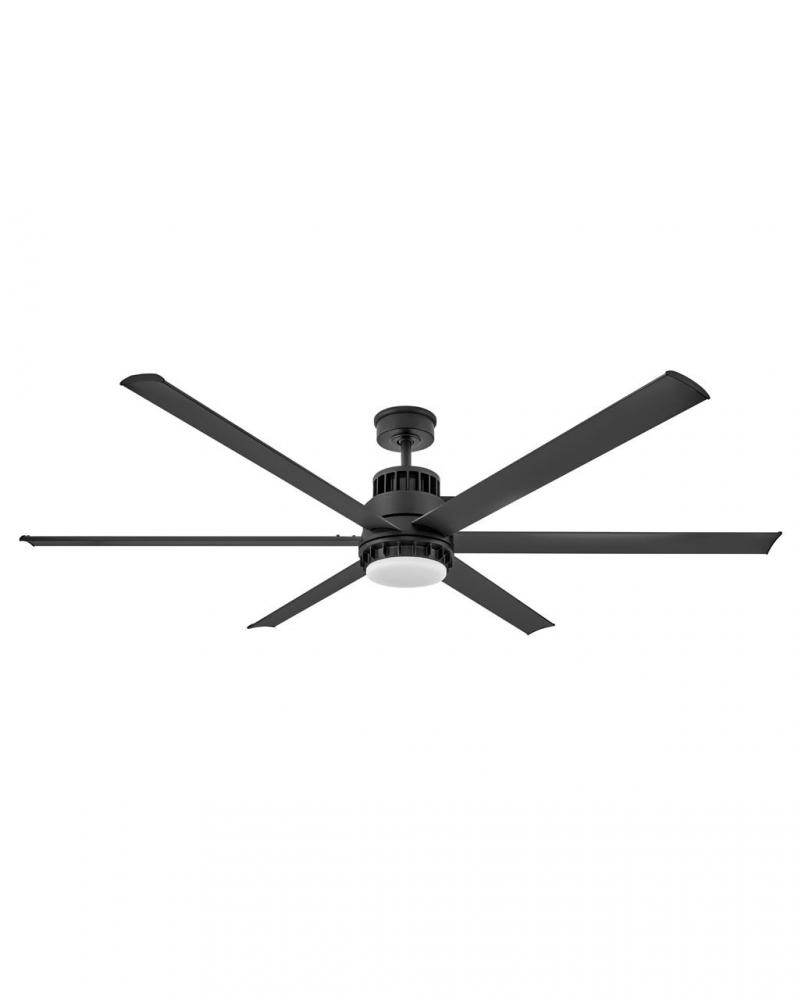

Draftsman 72" LED Smart Fan (905372FMB-LWD) by Hinkley
Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.
Product Specification
Item #
905372FMB-LWD
Dimensions
Height: 17.00"
Width: 72.00"
Length: 72.00"
Additional product details
Vendor Item #
905372FMB-LWD
Internal #
9WVU2
Category
Exterior , Fans
Subcategory
Exterior Fans , Ceiling Fans with Light
Finish
Black
Style
Transitional , Industrial
Option
Wet Rated , Prop 65
Voltage
100-120
Lumens
1101-1600
Number of Blades
6 Blades
Kelvin
2501-3000
Subfinish
Matte Black
Location Rating
Wet Rated
Category
Fan
Finish
Matte Black
Style
Industrial
Family
Draftsman
Glass
White Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
9902
Amperage
0.52
Blade Finish
Matte Black
Blade Pitch
12
Blade Span
72
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6.5 Dia. x 2.5 D
Introduction Date
01/01/2023
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DC 155 x 22 (Ferrite)
Motor Type
DC
Ship Carton Height
9
Ship Carton Length
34
Ship Carton Width
17
Ship Weight
35
Vendor Ship Method
Parcel
Weight
28
Airflow Avg
7348
AMPS Avg
0.31
Avg Energy Use
24
Blade Material
Aluminum
Blade Options Available
No
Blade To Ceiling Height
12.75
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Dual Mount
No
Efficiency Avg
305
Efficiency High
294
Energy Cost Avg
7
Energy Cost High
9
Energy Use High
33.7
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Wet Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
6
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
Rpms Avg
82
RPMS High
112
Safety Rating
UL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Style-2
Transitional
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Manufactured By
Hinkley


Other Details:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Merging the best of traditional and modern elements with a sophisticated and streamlined look
  • Motor carries a lifetime warranty
  • Powered by a highly efficient and quiet DC motor
  • Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item may be hung on a sloped ceiling
  • This product uses recyclable or limited packaging materials to help reduce waste.
  • WiFi compatible with included fan control
